CloudStack DNS Framework

Overview

The DNS Framework in Apache CloudStack introduces a pluggable architecture for Domain Name System (DNS) management. It enables CloudStack to integrate with external DNS providers and manage DNS zones and records as part of cloud orchestration.

This framework is designed with extensibility in mind, allowing additional DNS provider plugins to be added in the future with minimal changes to the core system.

As part of the initial implementation, PowerDNS is the supported DNS provider.

Architecture

The DNS Framework consists of the following components:

  • Core DNS service layer: Defines interfaces and orchestrates DNS operations

  • Provider plugins: Implementations for specific DNS providers (e.g., PowerDNS)

  • API layer: Exposes DNS functionality to users and administrators

  • UI integration: Provides user interface components for DNS management

The framework abstracts provider-specific logic, enabling seamless integration of multiple DNS backends.

Terminology and Hierarchy

The DNS Framework introduces several new concepts and entities:

  • DNS Provider Type: The underlying software or service facilitating DNS integration (e.g., PowerDNS).

  • DNS Server: A configured, operational instance of a DNS Provider Type containing connection details, API endpoints, and access credentials (e.g., NYC-PowerDNS-01).

  • DNS Zone: The domain namespace managed by a specific DNS Server (e.g., prod.example.com).

  • DNS Record: An individual entry within a DNS zone that maps a domain name to an IP address or other resource.

Capabilities

The DNS Framework provides two primary capabilities:

  • DNS Management: Allows users and administrators to create, update, and delete DNS zones and records through CloudStack.

  • Automatic DNS Record Registration: Automatically manages DNS records for Instances based on their lifecycle events.

These capabilities can be used independently or together, depending on deployment requirements and operational preferences.

DNS Server Configuration

Before using DNS management or automatic DNS record registration, a DNS server must be configured in CloudStack.

A DNS server represents integration between CloudStack and a supported DNS provider (for example, PowerDNS) and includes all necessary connection details and credentials.

UI Overview

The CloudStack UI has been enhanced to include DNS management capabilities.

DNS Servers and DNS Zones are now available under the Network section in the left navigation panel.

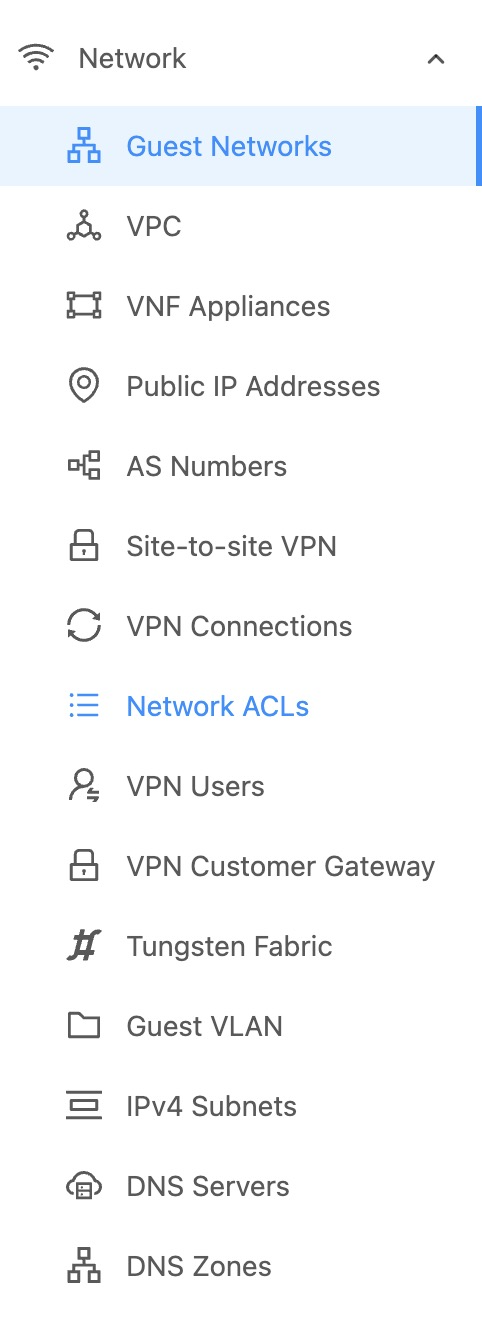

DNS UI navigation showing DNS Servers and DNS Zones under Network

Adding a DNS Server

A DNS server represents the integration point between CloudStack and an external DNS provider. It defines how CloudStack connects to and manages DNS resources such as zones and records on the provider side.

When adding a DNS server, CloudStack stores the following information:

  • Provider type (for example, PowerDNS)

  • API endpoint used to communicate with the DNS provider

  • Authentication credentials (API key or username/password)

  • Name servers used for zone delegation

  • Optional metadata such as public accessibility and domain suffix rules

This configuration enables CloudStack to perform DNS operations on behalf of users, including zone creation, record management, and automatic instance DNS registration.

DNS servers can be added either through the CloudStack UI or using the API.

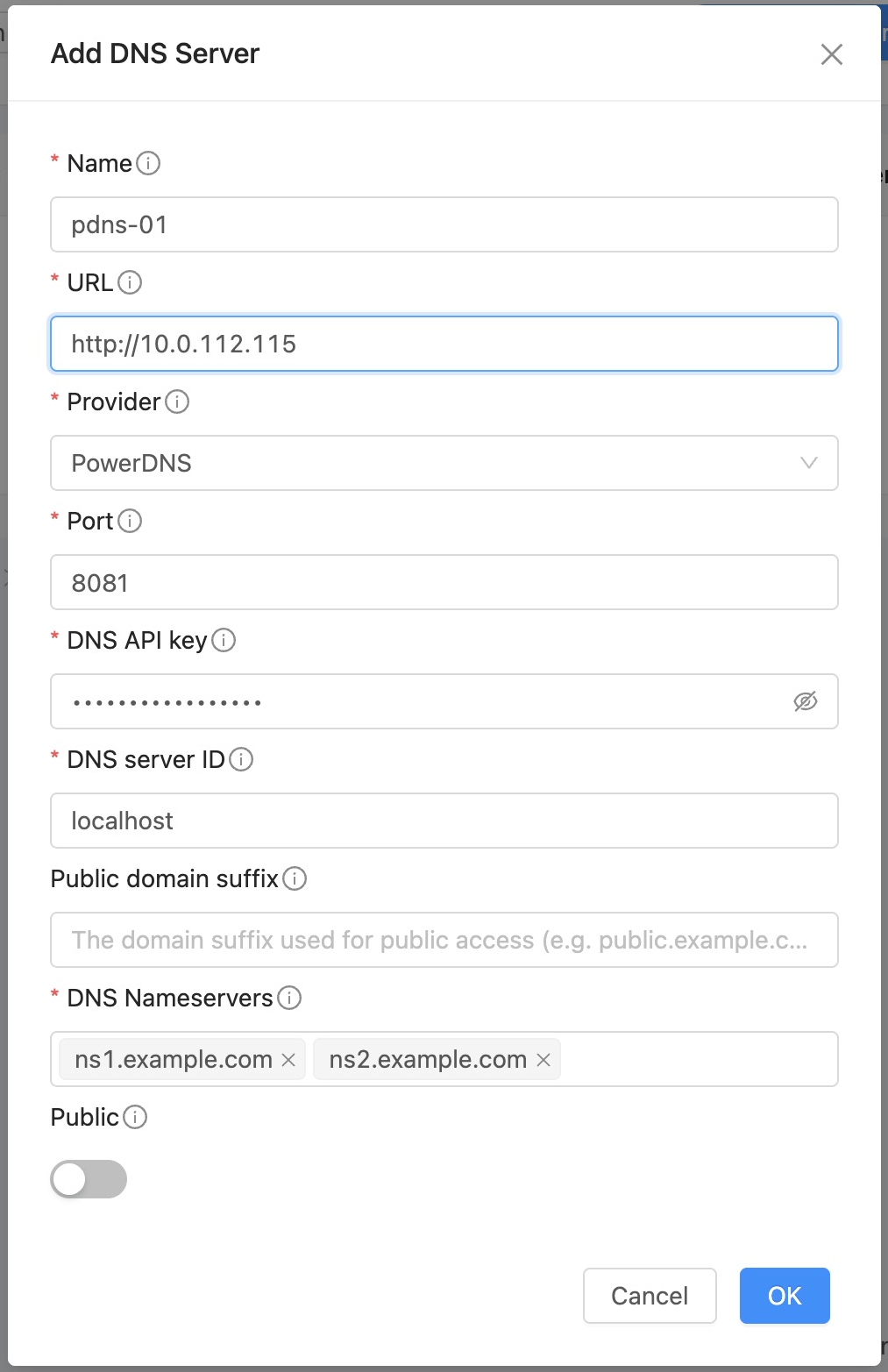

Add DNS Server in CloudStack UI

Using the API, a DNS server can be added with a command similar to the following:

cmk add dnsserver name="pdns-01" provider="PowerDNS" \
   url="http://<powerdns-ip>:8081" dnsapikey="<api-key>" \
   nameservers="ns1.example.com,ns2.example.com" externalserverid="localhost"

Parameters

Name

Required

Description

name

Yes

Unique name for the DNS server

provider

Yes

DNS provider type (e.g., PowerDNS)

url

Yes

API URL of the DNS provider

dnsapikey

Yes

API key or token used for authentication

nameservers

Yes

Comma-separated list of authoritative name servers

dnsusername

No

Username or email associated with the DNS provider account

externalserverid

No

Identifier or hostname of the DNS server in the provider (for example, localhost in PowerDNS)

port

No

Port number of the DNS server (if different from default)

ispublic

No

Specifies whether the DNS server is publicly accessible to other accounts

publicdomainsuffix

No

Specifies the domain suffix under which the DNS zone is created when the DNS server is not owned by the user (e.g., example.com)

Note

  1. Public DNS servers can be used by other accounts, only admin and domain admins can create Public DNS server.

  2. If user creates a DNS zone using non-owned Public DNS server, the zone will be created with a domain suffix defined in the Public DNS server configuration (e.g., if the suffix is example.com and user creates a zone named test.com, the actual zone created in the DNS provider will be test.example.com).

  3. Nameservers provided during DNS server addition are used for DNS zone creation.

DNS Zone Management

Creating a DNS Zone

A DNS zone is always created under an existing DNS server configured in CloudStack, which determines the external DNS provider where the zone will be provisioned and managed.

From UI:

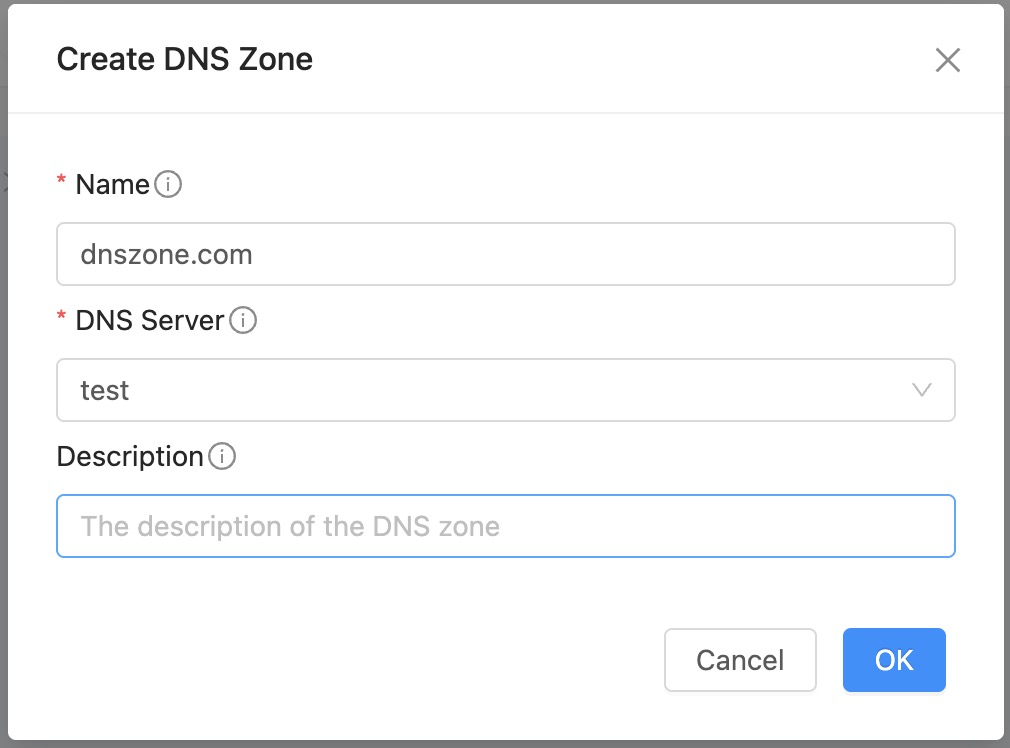

Create DNS Zone in CloudStack UI

Using the API:

cmk create dnszone dnsserverid=<dns-server-id> name="example.com" description="Example DNS zone"

Parameters

Name

Required

Description

name

Yes

The name of the DNS zone (e.g. example.com)

dnsserverid

Yes

The ID of the DNS server to host this zone

description

No

The description of the DNS zone

Updating a DNS Zone

Only description is allowed to be updated.

cmk update dnszone id=<zone-id> description="New description for the DNS zone"

Deleting a DNS Zone

Quick action buttons are available in the UI to delete a DNS zone.

From UI:

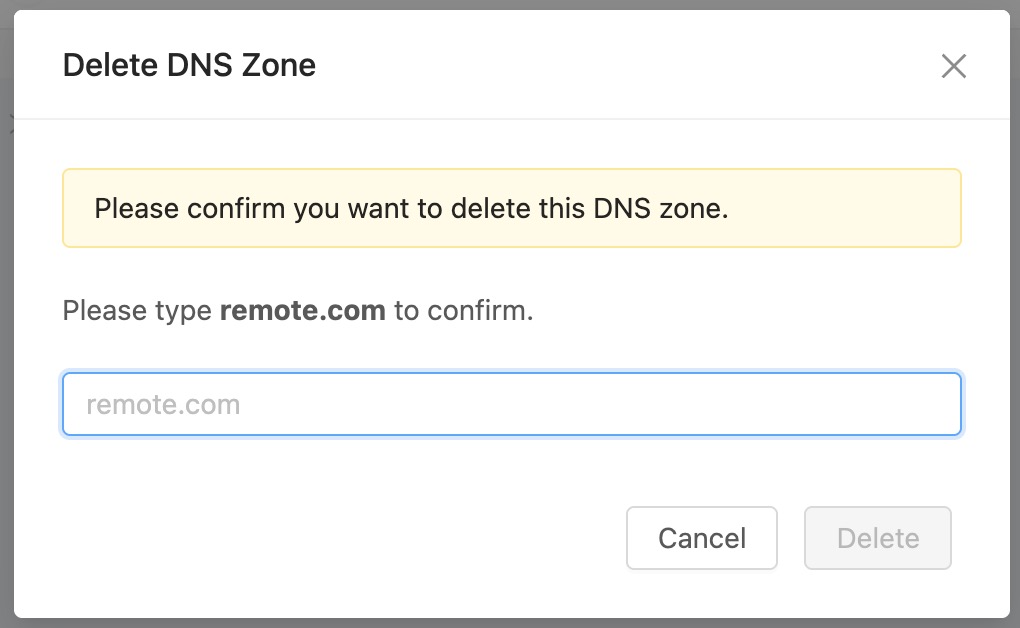

Delete DNS Zone in CloudStack UI

Using the API:

cmk delete dnszone id=<zone-id>

Note

Deleting a DNS zone will also delete all DNS records within that zone.

DNS Record Management

DNS records can be managed using both API and CloudStack UI. In the UI, DNS records are accessible after navigating into a specific DNS zone, where users can perform create, update, and delete operations.

UI Overview

The DNS records can be managed under a selected DNS zone in the CloudStack UI.

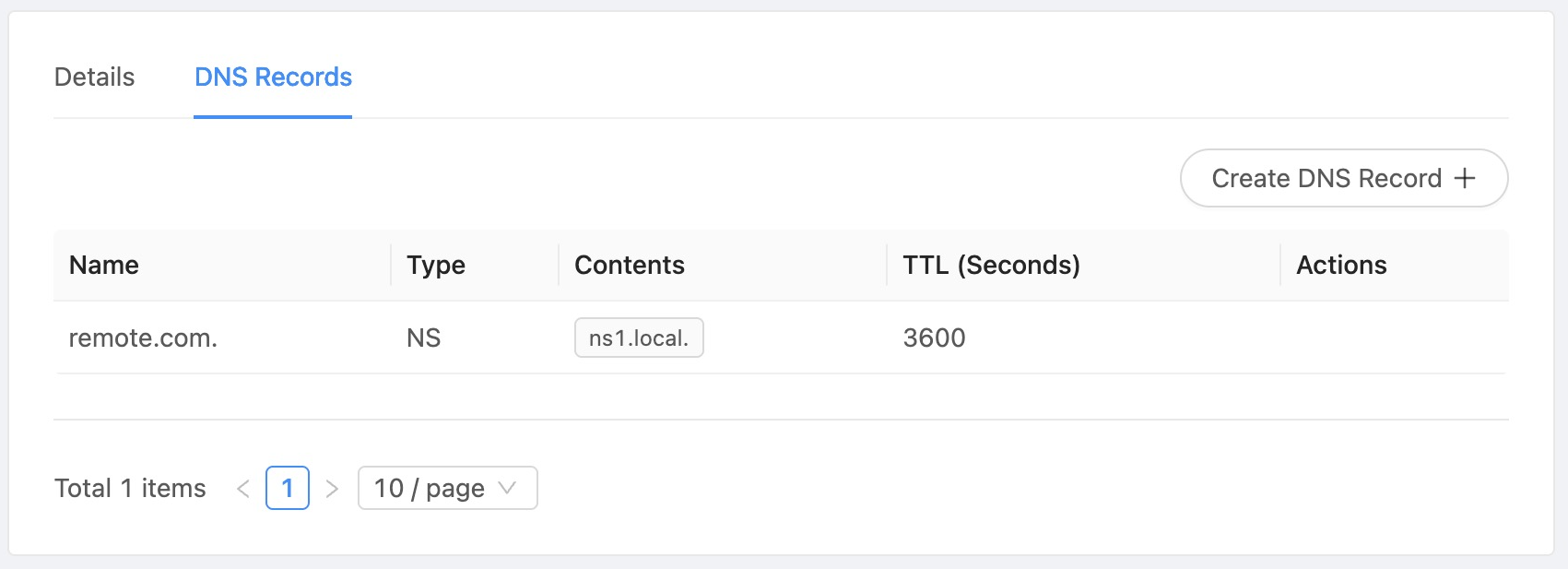

DNS record management UI within a DNS zone

Creating a DNS Record

A DNS record represents a mapping between a domain name and its corresponding resource. Records are created within a DNS zone and stored in the configured DNS provider.

Parameters

Name

Required

Description

dnszoneid

Yes

The ID of the DNS zone where the record will be created

name

Yes

DNS record name (e.g. www or app.example.com)

type

Yes

DNS record type (e.g. A, AAAA, CNAME, MX, TXT)

contents

Yes

Content of the record (IP address for A/AAAA, FQDN for CNAME/NS, quoted string for TXT, etc.)

ttl

No

Time to live (TTL) value for the record

From UI:

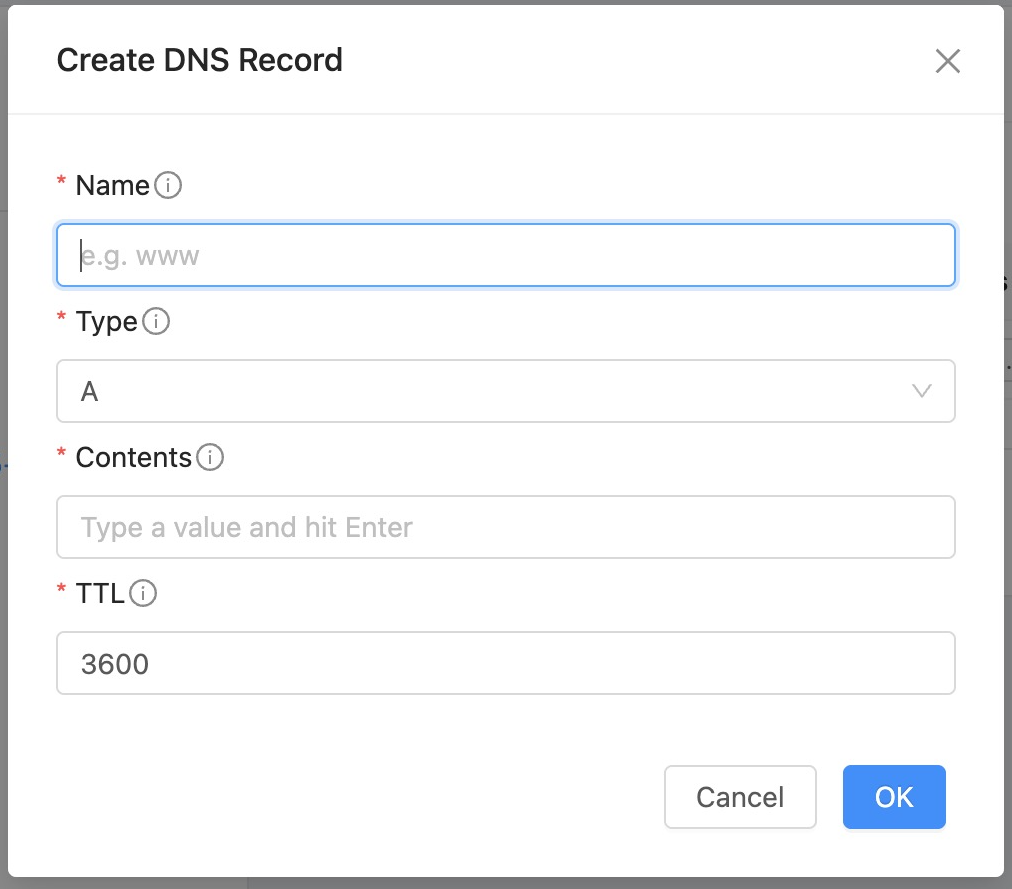

Create DNS Record in CloudStack UI

From API:

cmk create dnsrecord dnszoneid=<zone-id> name="www" type="A" contents="10.1.1.10" ttl=3600

Note

  • The format of contents depends on the record type.

  • DNS records are immutable, to update a record, it must be deleted and recreated with the new values.

Deleting a DNS Record

A DNS record can be deleted from the configured DNS provider using CloudStack. This operation removes the record from the associated DNS zone.

From API:

cmk delete dnsrecord dnszoneid=<zone-id> name="www" type="A"

Note

The combination of name and type must match an existing record in the zone.

Automatic DNS Record Registration for Instances

The DNS Framework supports automatic registration and management of DNS records for Instances based on their lifecycle events.

When enabled, CloudStack automatically creates, updates, and removes DNS records corresponding to Instance state changes, ensuring DNS consistency without manual intervention.

Overview

Automatic DNS registration operates at the Instance level and integrates with Instance lifecycle operations.

The feature ensures that DNS records reflect the current state of deployed Instances in real time or near real time, depending on the configured DNS provider behavior.

Behavior

Automatic DNS registration is driven by instance lifecycle events and NIC-level changes within networks that have an associated DNS zone.

Prerequisites

Before automatic DNS registration can function, the following conditions must be met:

  • A DNS server must be configured in CloudStack

  • A DNS zone must be created and associated with the DNS server

  • The DNS zone must be associated with a network

If any of the above prerequisites are not met, no automatic DNS operations will be performed.

Event Mapping

The following table summarizes DNS record operations:

Event

DNS Action

Instance creation

Create DNS record using instance hostname and NIC IP

NIC addition (plugged into network with DNS zone)

Create DNS record using instance hostname and NIC IP

NIC IP address change

Update corresponding DNS record with new IP address

Instance deletion

Delete all DNS records associated with the instance

NIC removal (unplugged)

Delete DNS record associated with the NIC

Associating a DNS Zone to a Network

A DNS zone must be associated with a network before automatic registration can function. Once associated, instance lifecycle events in that network will trigger automatic DNS record creation and management.

This can be done either via the CloudStack UI or API.

From UI:

We can associate a DNS zone to a network using a quick action on the Network by navigating to the Guest Networks page.

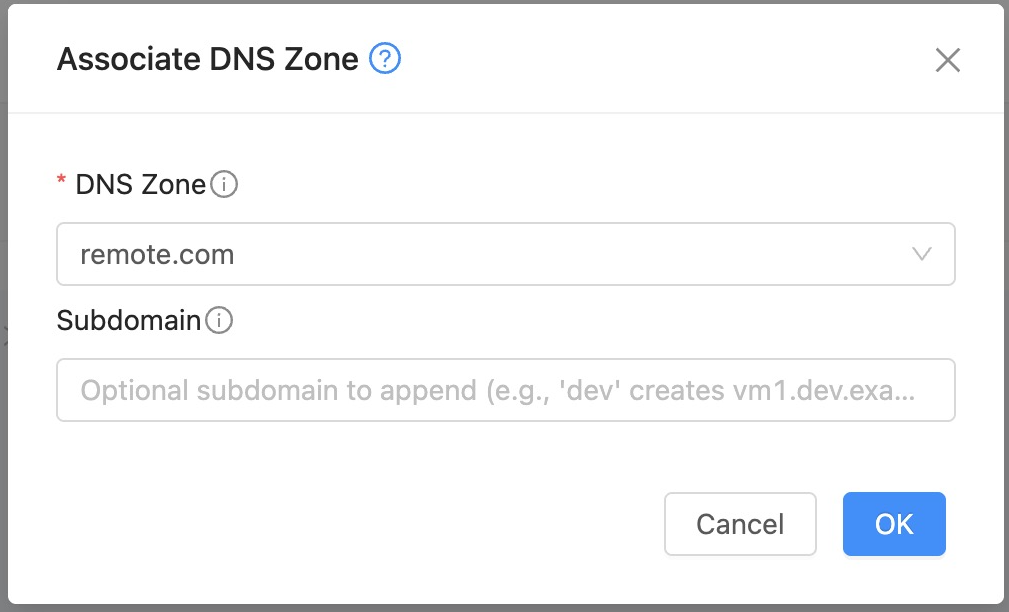

Associate DNS Zone to Network in CloudStack UI

From API:

cmk associate dnszonetonetwork dnszoneid=<dns-zone-id> networkid=<network-id> subdomain=<optional-subdomain>

Parameters

Name

Required

Description

dnszoneid

Yes

The ID of the DNS zone

networkid

Yes

The ID of the network

subdomain

No

Optional subdomain to append to the DNS zone (e.g. dev creates vm1.dev.example.com for vm1 Instance in the network instead of vm1.example.com)

Note

  • Automatic DNS registration will not work unless a DNS zone is associated with the network.

  • Once association is complete, all instances deployed in the network become eligible for automatic DNS record management.

DNS Naming Convention

By default, DNS records are created using the Instance hostname with following format:

<hostname>.<subdomain>.<dns-zone>

<subdomain> is optional based on the association configuration.

For example, if the hostname is vm1, subdomain is dev, and DNS zone is example.com, the resulting DNS record will be vm1.dev.example.com.

In case of DNS record name collision, creation is skipped to avoid inconsistencies. A warning is logged and an event of type DNS.NAME.COLLISION is generated for the affected instance. Users can then choose to manually create a unique DNS record for the instance or update the hostname to resolve the conflict

Instance DNS Information

Once a DNS zone is associated with a network, Instances deployed in that network will automatically receive DNS records based on their NIC configuration.

In the Instance details view, the DNS name assigned to each NIC is displayed along with the corresponding IP address. This reflects the DNS record that has been automatically created for the instance.

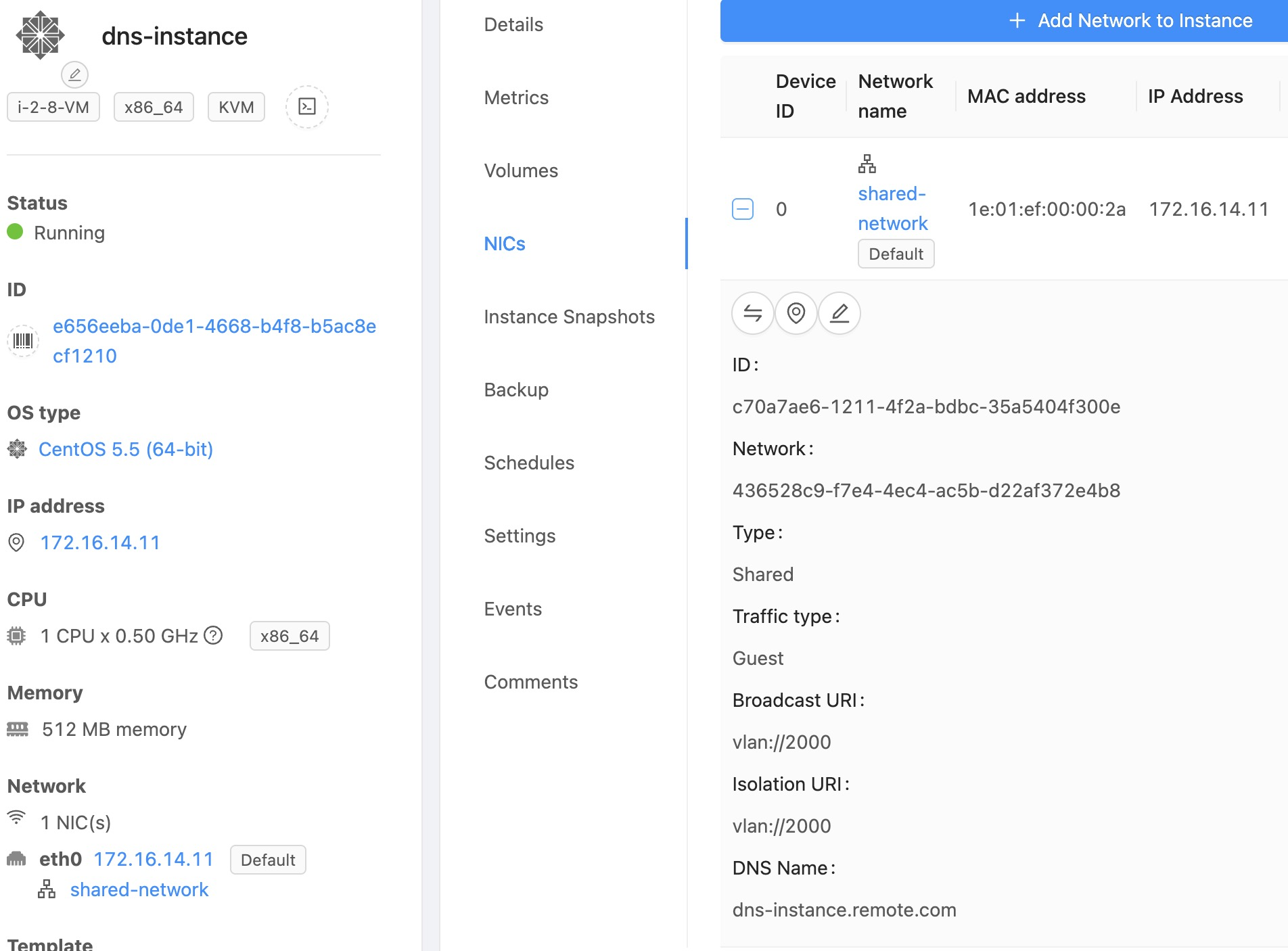

Instance details showing DNS name assigned to NIC

Note

  • This feature requires a properly configured DNS server and an associated DNS zone.

  • Record updates depend on the Instance lifecycle events triggered within CloudStack.

  • Provider synchronization delays may affect DNS propagation time.

  • Manual DNS records created in the same zone may conflict with auto-managed records. In such cases, automatic registration may skip creation and log a collision event.

Limitations

  • Automatic DNS registration for Instances is limited to Shared Networks
